Graph IDE ► Custom Application ► HandsOff

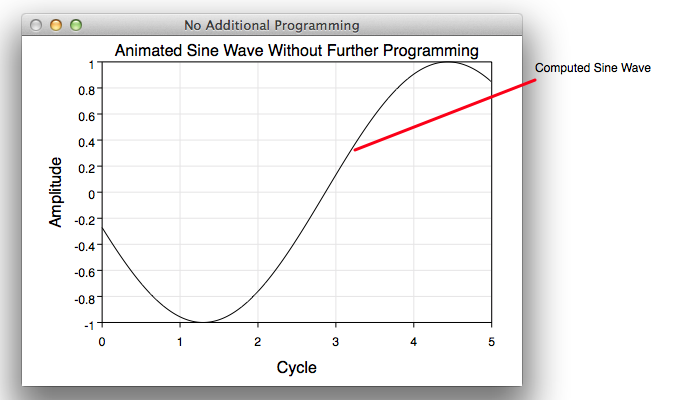

This section describes how to write a custom application called HandsOff. The user interface is diagrammed below.

The fastest way to write a custom application is to download the HandsOff example project, compile it and modify it for your needs. HandsOff resources are available from these links:

The following explains the essential steps of the HandsOff project.

The graph and white portion in the figure above is a Graphic View that is loaded from a Graph IDE Document. That document is set to animate and compute a sine curve on the graph. There is no other programming required. To get a document to load into an application follow these steps:

• Add a Custom View to the application window.

• In the Identity inspector of that custom view assign the Custom View to the VVPUBLIC_GraphicContainerView class. Then in the User Defined Runtime Attributes add a new row and assign:

  Key Path	:	documentName
  Type	:	String
  Value	:	HandsOff

• Link in the necessary frameworks.
