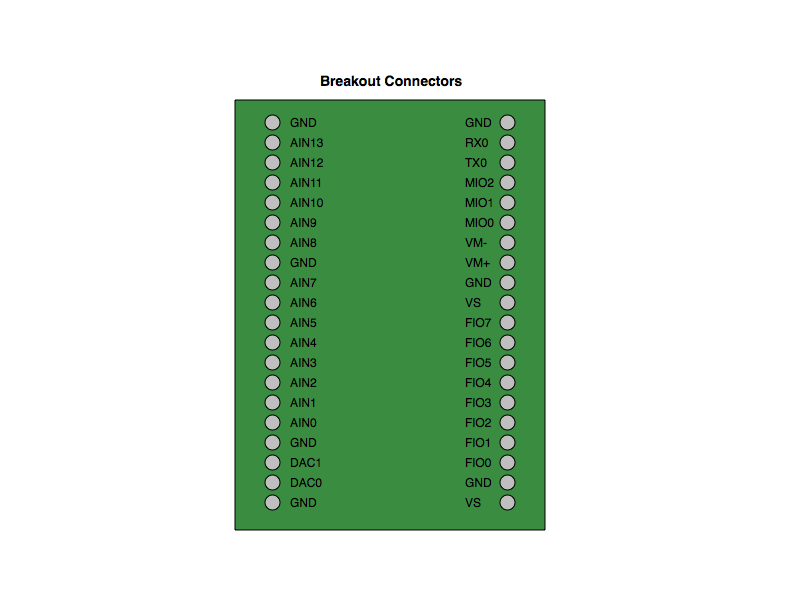

The following schematic diagrams the connectors that you will be using.
Terminals AI0-AI13 are the 14 analog input channels. DAC0 and DAC1 are the two analog output feedback channels. FIO0-FIO7 are the 8 digital output channels.
To setup the logic for these terminals see Pro USB Preferences.
