Inspector Fields

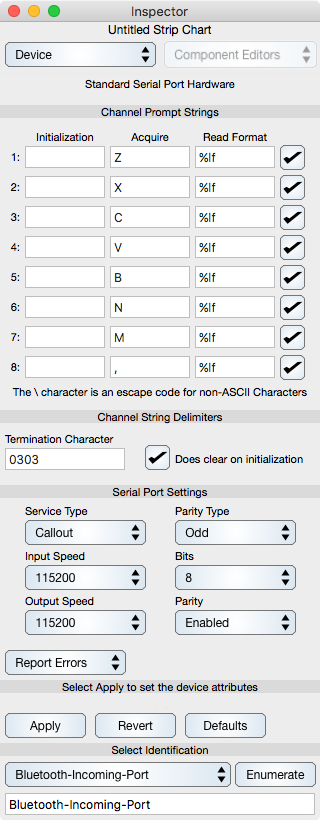

Upon launching Strip Chart serial port devices show up in the Identification pop up button. Choose a device to enter it into the Identification text field, configure it using the appropriate fields and then click Apply.

A note about serial port enumeration (system detection): In general, serial port devices do not give notification to Strip Chart when they are plugged in and unplugged. As a result, if you plug in a serial port device while Strip Chart is running then Strip Chart has no way of determining if that device is present. You must quit Strip Chart, plug in your serial port device and then launch Strip Chart. Likewise, if you disconnect the serial port device while Strip Chart is running then Strip Chart will not detect the disconnect, rather Strip Chart will assume the device is generating an error or pause and try to acquire from it (harder). Either way Strip Chart will appear to be hung because it is trying to acquire data from hardware that does not exist and, unlike USB device protocol, there is no system notification regarding the absence of the device. So, keep serial port devices plugged into your computer while acquiring data.

Serial Port device protocol is defined for each channel independently as: Write the Initialization string to the serial port then repeat the Acquire string in an acquisition loop. The data outputted as a result of the Acquire string is decoded using the Read Format string. For each acquired returned string there is a termination character which is a delimiter letting Strip Chart know that the serial port device is done outputting data for a channel. Many times the termination character is an ASCII return character ('\r'), but it can be anything such as the octal value 0303. If the serial port device has no termination character (which may be a rare condition) then set the Termination Character field to be empty.

Use the backslash to escape characters in the command. The read format is the usual ANSI-C format specifier. All characters are optional except for the value format control string (which is %lf).

If a string is empty then it is not used during the acquisition. For example, if the Initialization string is blank then no initialization string is sent to the serial port device and instead the serial port device is presented with only the Acquire string.

Serial port preference attributes are defined in the following table. For values specific to your device consult the manufacturer's specification sheet. In practice, these attributes may not be sufficiently documented in which case trial and error can often produce satisfactory results.
